What does a concrete repair spur do?

So, what does a concrete repair spur do? Sometimes called “godfathers,” they can help fix or reinforce fence posts. They offer several benefits and can be used in a variety of situations.

Using Concrete Repair Spurs to Fix and Strengthen Fences

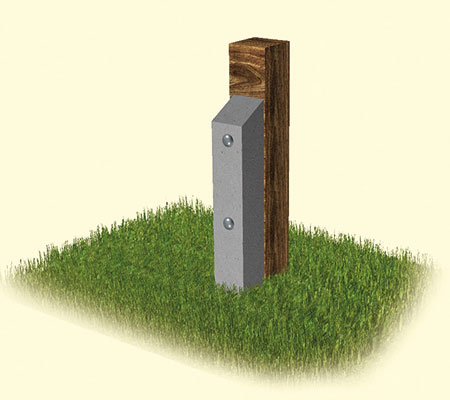

Concrete Repair spur fitted to fix a broken timber fence post

Fixing Damaged or Rotted Fence Posts:

  • Rotted Posts: A concrete repair spur is often used to fix fence posts that have rotted at their base. The spur provides support and stability, replacing the need to replace the entire post.
  • Broken Posts: Similarly, a concrete repair spur can mend a broken fence post, offering a less expensive alternative to replacing the post entirely.

Enhancing Fence Post Stability and Strength:

  • Prevent Future Movement: A concrete repair spur is anchored firmly into the ground. This anchoring helps prevent fence posts from moving in the future and ensures the fence’s stability.
  • Reinforce New Fences: When installing new fences, particularly in areas with strong winds or unstable ground, a concrete repair spur can provide additional strength and can help the fence last longer.
  • Strengthening Fence Panels: Concrete repair spurs can also be used to bolster the strength of fence panels.

Installing a Concrete Repair Spur

To install a concrete repair spur, you dig a hole large enough to accommodate half of the spur. The spur is then placed into the hole and secured with concrete. The other half of the spur remains above ground, where you can bolt the broken or damaged post to it.

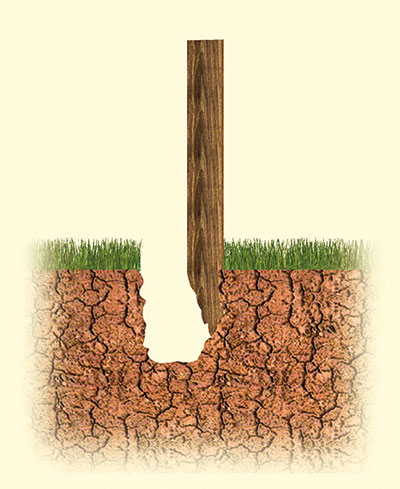

Repair spur illustration - Dig out hold for spur

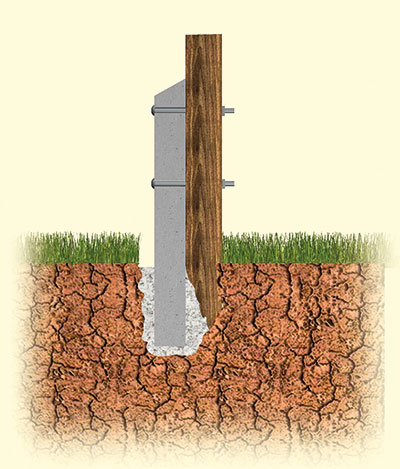

Repair spur illustration - Complete Bolted In

Benefits of Using a Concrete Repair Spur

  • Ease of Installation: A key advantage of concrete repair spurs is that they are easy to install. You can repair a fence post without taking the entire fence down.
  • Cost-Effective: A concrete repair spur is a less expensive alternative than replacing an entire fence post.
  • Durable: Concrete repair spurs are made with steel-reinforced concrete, which makes them very durable. They can withstand rainy weather and will last for years.

Concrete repair spurs are an effective way to fix damaged fence posts and reinforce new fences. They are easy to install, affordable, and durable.

Components you will need for the job:

  1. Concrete Repair Spur: This is the main component of the repair, providing a sturdy base for the weakened post. You can choose a spur size that is appropriate for your fence post dimensions. Click here for our Repair Spurs
  2. Post Mix: You’ll need concrete to secure the spur in the ground. Pre-mixed post-mix is recommended for its ease of use, eliminating the need for complex mixing ratios. One bag per fence post is usually sufficient under normal soil conditions, but it’s wise to have a couple of extra bags on hand. Click here for our Post Mix
  3. M10 Coach Screw: These heavy-duty screws are used to attach the concrete repair spur to the wooden fence post, ensuring maximum stability. Click here for our Coach Screws
  4. M10 Square Plate Washer: The washer will help evenly apply the pressure at the hole; you can go without the washer, but you risk damaging the spur as a result. Click here for our Square Plate Washer

Tools for the job:

  • Wood Preservative: While optional, it’s a good practice to apply wood preservative to the fence and the exposed post during the repair. This helps protect the wood from decay and extends its lifespan.
  • Spade: This is necessary to dig the hole for the concrete repair spur. The hole should be about half the depth of the spur.
  • Wooden Braces (optional): These can be helpful to hold the fence post straight while you mark and drill the holes for the repair spur.

Additionally, you might need:

  • Measuring Tape: To accurately measure the depth of the hole and the position of the screw holes.
  • Pencil or Marker: To mark the drilling points on the spur and the post.
  • Safety Glasses and Gloves: To protect yourself during the process.
  • Wheelbarrow (optional): To transport the post mix and tools.
  • Level (optional): To ensure the fence post is plumb after the repair.

This list comprises the essential items and additional tools that can facilitate the repair process. Having these items readily available will ensure a smooth and efficient repair job.
